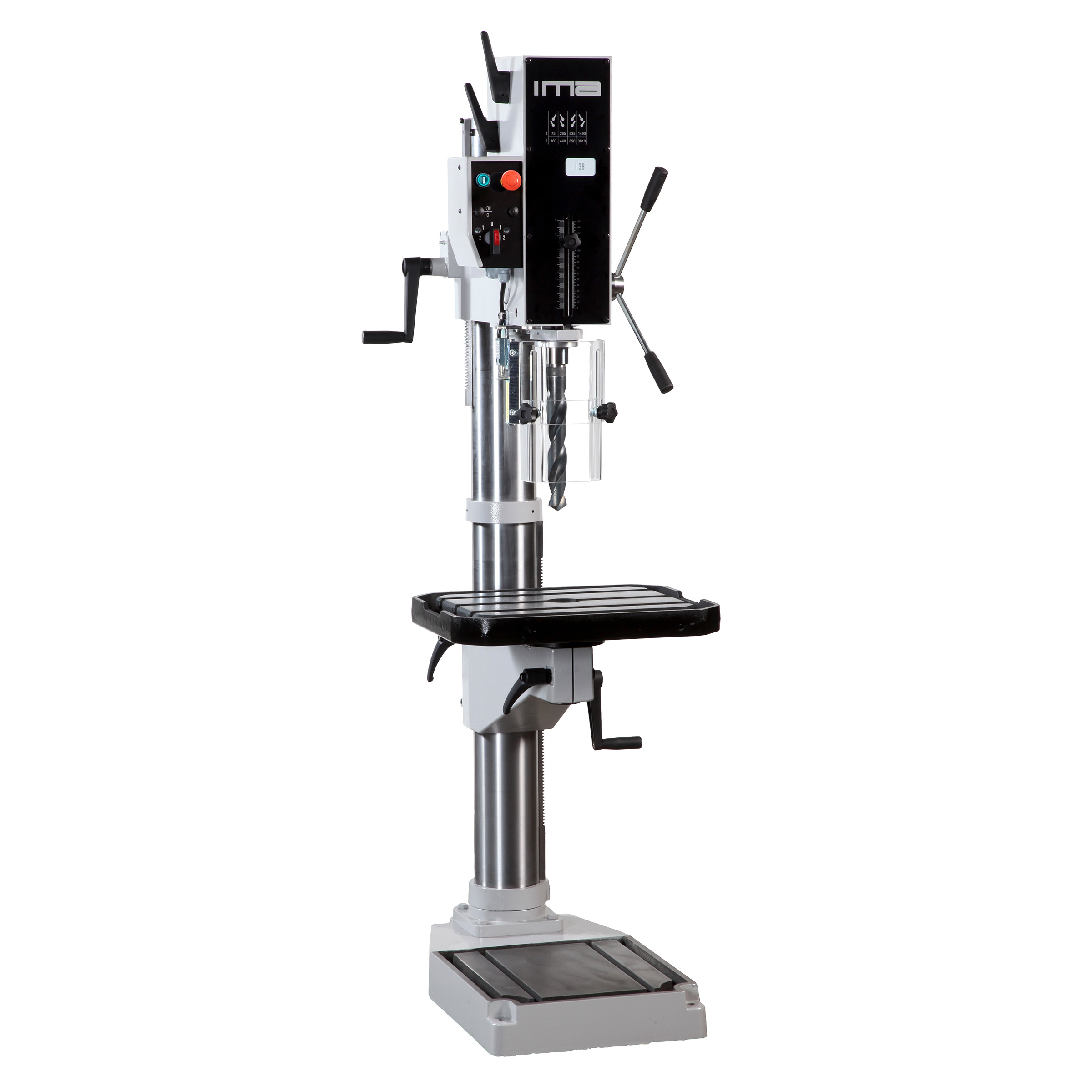

Column drilling machine I 38
Working table is turn able 360° around its own center. Drill guard with micro switch is standard within the CE-area
IMA I 38 – Manual feed.
IMA I 38 M – Automatic power feed to simplify the work for the operator. Hole in one!
IMA I 38 ME – Automatic power feed with electromagnetic clutch. Start/Stop of the automatic feed is handled by buttons at the top of the feed lever. Hole in one!
Automatic reversing for tapping is standard for IMA I 38 ME
More information
The gear box is built according to our well known approved technique for highest torque. Helical gears combined with steel gears against reinforced fiber gears ensure strong gear teeth’s, longer lifetime, low sound level and a more or less maintenance free gear box.
Both Drill head and table arm are turn able 360° around the column and also adjustable.
Technical specifications
Drilling capacity: 35 mm
Quill movement: 150 mm
Distance drill – column: 320 mm
Accessories
Emergency foot switch
Also available with retractive button.
Threaded spindle nose with locking nut
Threaded spindle nose with locking nut for securing milling chuck with collets.
Digital depth stop readout
Digital readout for drill depth.
Machined baseplate
Baseplate with 2 T-slots.
Milling table FB402
With automatic longitudinal feed. Clamping area 584×242 mm. Longitudinal feed 415 mm. Cross feed 155 mm. incl. intermediate plate.
Milling table FB102
Clamping area 584×242 mm. Longitudinal feed 415 mm. Cross feed 155 mm. incl. intermediate plate.
Milling table FB101
Clamping area 450×242 mm. Longitudinal feed 275 mm. Cross feed 155 mm. incl. intermediate plate.
Milling chuck
Collets ER 6,8,10,12,16 mm (MT3) or 6,8,10,12,20 mm (MT4).
Drill chuck with arbor
0-13 mm, 3-16 mm or 5-20 mm.
Foot operated start switch
Start and stop pedal. Only for spindelmotor, not for power feed.
Foot operated reversing switch
Foot pedal for changing rotation direction of tapping operations.
Machine light
MSC Machine light, LED lamp.
Automatic reversing
Automatic reversing with micro switch for tapping. Maximum 5 reversals per minute.
Coolant equipment
Complete tank (15 l), pump with switch and all tubing’s with accessories.
Tool package MT 3
– Machine vice 120 mm jaws,
– 2 x T-slot nuts
– Chuck 1-13 mm B 16 Metabo with arbor MT 3
– Reduction sleeve no MT3/MT2
– Reduction sleeve no MT3/MT1
