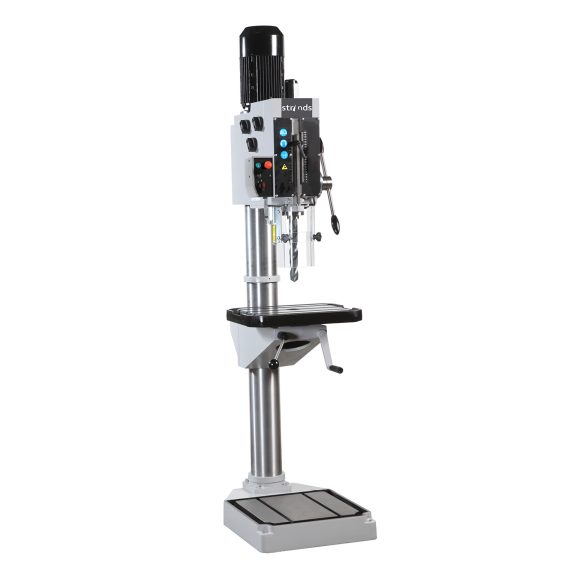

Column drilling machine S 40

STRANDS S40 has a drilling capacity of 40mm. The gear box is built according to our experienced methods for highest possible torque. The drill head is fixed on top of the column. The table arm is adjustable 360° around the column and can be raised and lowered.

STRANDS S40M: When the set drill depth is reached, the spindle will automatically return to the starting point. The feed can also be interrupted manually. The feed gear box is provided with an automatic overload protection device, which intervenes, when the drill pressure is too high.

STRANDS S40ME: Start / Stop of the automatic feed are handled by buttons at the top of the feed lever. Hand and automatic reversing for tapping are standard.

Chuck guard with micro switch is standard for machines within CE-område.

More information

The gear box is built according to our well known approved technique for highest torque.

Helical gears combined with steel gears against reinforced fiber gears ensure strong gear teeth’s, longer lifetime, low sound level and a more or less maintenance free gear box.

Technical specifikation

Drilling capacity: 40 mm
Quill movement: 190 mm
Distance drill – column: 330 mm

Accessories

Rotary device for table

For table 400 x 500 mm.

Machine light

Low/high spindle speed

Low spindle speed, 60 – 980 rpm.
High spindle speed, 180 – 3000 rpm.

Automatic reversing

Threaded spindle nose with locking nut

Threaded spindle nose with locking nut for securing milling chuck with collets.

Milling table FB402

With automatic longitudinal feed. Clamping area 584×242 mm. Longitudinal feed 415 mm. Cross feed 155 mm. incl. intermediate plate.

Milling table FB102

Clamping area 584×242 mm. Longitudinal feed 415 mm. Cross feed 155 mm. incl. intermediate plate.

Milling chuck

Collets ER 6,8,10,12,16 mm (MT3) or 6,8,10,12,20 mm (MT4).

Drill chuck with arbor

0-13 mm, 3-16 mm or 5-20 mm.

Foot operated start switch

Start and stop pedal. Only for spindelmotor, not for power feed.

Coolant equipment

Complete tank (15 l), pump with switch and all tubing’s with accessories.

Tool package MT 3

– Machine vice 120 mm jaws,
– 2 x T-slot nuts
– Chuck 1-13 mm B 16 Metabo with arbor MT 3
– Reduction sleeve no MT3/MT2
– Reduction sleeve no MT3/MT1
