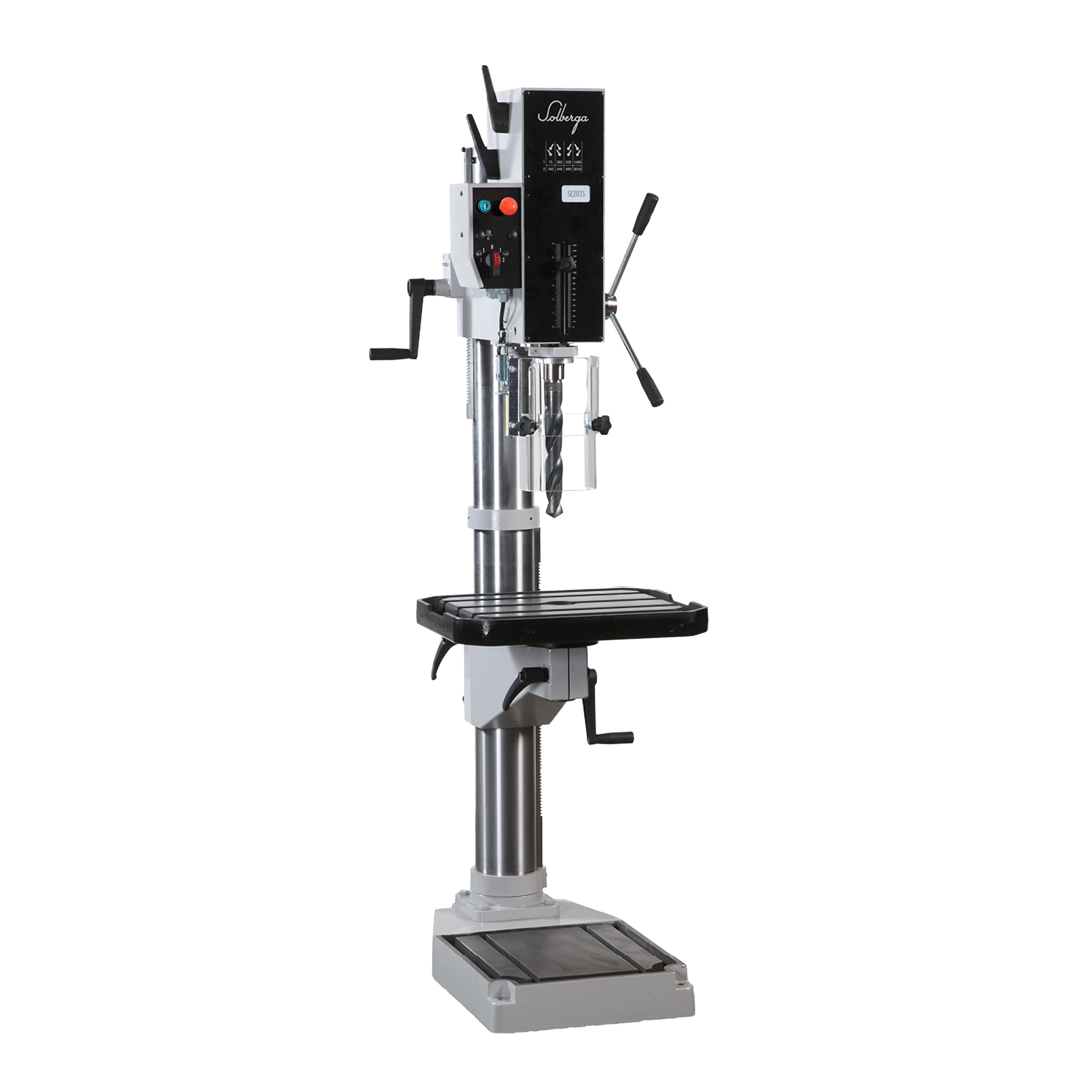

The gear box is built according to our well known approved technique for highest torque. Helical gears combined with steel gears against reinforced fiber gears ensure strong gear teeth’s, longer lifetime, low sound level and a more or less maintenance free gear box.
Both Drill head and table arm are turn able 360° around the column and also adjustable.
Working table is turn able 360° around its own center.
Drill guard with micro switch is standard within the CE-area.
Drilling capacity: 35 mm
Quill movement: 150 mm
Distance drill – column: 320 mm
Chuckguard 16009055R alt. 16009050R
Chuck guard with (16009055R) or without (16009050R) microswitch. Suitable for 25 – 35mm machines and for older types like S68, S32ME and IG(M) 30-8.
For G2508, G2512 we have an Assembly kit. Contact us for item number.
For U2508, E-series (E100, E825 etc.) and older Radial Drilling Machines we have no chuck guard that fits.
